Parameter Reconstruction

In order to use the new JCMoptimizer, please follow the instructions in the JCMoptimizer documentation.

In this tutorial we briefly discuss how we can perform a parameter reconstruction using a Mueller matrix ellipsometry dataset. We use the same project files that were also used in the discussion on Mueller matrix ellipsometry in the EM tutorial example.

We assume that we have acquired a set of measurements from a Mueller matrix ellipsometry experiment on a grating, that was performed for a series of different incident light wavelengths \vec{\lambda}. These measurements are arranged in a target vector \vec{t}. As we control its construction we know which Mueller matrix element and wavelength contributes to which vector element. We further assume that we can assign a measurement uncertainty to each of the components in \vec{t}, we denote the measurement uncertainty vector as \vec{\eta}. Please note that the actual ordering of the components within the vector is of no importance for the reconstruction.

The information contained in the target vector \vec{t} can be used to infer the geometrical parameters of the investigated grating. This can be done by solving an inverse problem. The approach for this is as follows. A parameterized model of the measurement process is created. The model parameters are then varied in a systematic fashion, until a set of model parameters is determined for which the calculated output of the model is similar to the set of experimental measurements of the grating.

The parameterized model for the Mueller matrix ellipsometry experiment is created using JCMsuite. A function is created which computes the Mueller matrix entries \vec{y} using the FEM model for the same set of incident wavelengths \vec{\lambda} that were used during the actual experiment. This involves the Fourier transformation and the scattering matrix postprocesses discussed in the EM tutorial. The various matrix entries are assembled in a vector \vec{y} with the same ordering as the target vector \vec{t}, and then returned.

The actual parameter reconstruction, that is the fit of the model output to the target vector, can efficiently be performed using the BayesianLeastSquares driver of the JCMoptimizer. The approach is closely related to Bayesian optimization and similarly employs Gaussian processes (a machine learning surrogate model), and allows to perform a global black box optimization of the least-squares problems. By using Gaussian processes the method is very well suited for expensive model functions, such as a wavelength dependent Mueller matrix calculation and is capable of finding a set of model parameters that explain the experiment in fewer iterations than conventional methods. An in-depth discussion and explanation of the approach is presented in an article on our Blog.

Reconstruction setup

The reconstruction script follows the same evaluator-based workflow as the Optimization tutorial. An archive to perform the reconstruction locally can be downloaded here. The complete script looks as follows. Please note that some logic is abstracted away into imported files.

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
"""Parameter reconstruction using JCMsuite

The details of the employed reconstruction are described in [1].

[1] https://onlinelibrary.wiley.com/doi/10.1002/adts.202200112

"""

import pathlib
import pandas as pd

import jcmwave
from jcmoptimizer import Client, Server
import numpy as np
from matplotlib import pyplot as plt
from utils.forward_problem import ForwardProblem

# from utils.generate_test_data import generate_test_data
from utils.material import SiMaterial

##############################################################################
# Parameters to play with

# Number of parallel jobs in JCMsolve; for demo version only 1 is allowed
MULTIPLICITY: int = 1

# Using derivatives of the FEM model for the reconstruction; speeds up the reconstruction
DERIVATIVE_ORDER: int = 1

# FEM degree of the JCMsuite model
FEM_DEGREE: int = 3

# Number of iterations in the optimization
NUM_ITERATIONS: int = 20

##############################################################################

# Register the localhost as a machine to perform computations
jcmwave.daemon.add_workstation(
    Hostname="localhost",
    #
    # Number of parallel jobs
    Multiplicity=MULTIPLICITY,
    #
    # Each parallel job runs with this number of threads. Use at least 2.
    NThreads=2,
)


def main():

    # Path to JCM project
    root_dir = pathlib.Path(__file__).parent
    data_dir = root_dir / "data"
    jcm_project_dir = root_dir / "jcm"

    project_file = jcm_project_dir / "project.jcmpt"

    optimization_dir = pathlib.Path(__file__).parent
    optimization_dir_str = str(optimization_dir.absolute())

    study_id = "Ellipsometry_reconstruction_example"

    # Remove any previous results
    (optimization_dir / f"{study_id}.jcmo").unlink(missing_ok=True)

    target_keys = pd.read_csv(data_dir / "target_parameters.csv")
    target_keys = pd.Series(
        target_keys.Value.values, index=target_keys.Parameter
    ).to_dict()

    # Rest of the parameters for the JCMsuite project
    keys = dict(
        # Numerical parameters
        derivative_order=DERIVATIVE_ORDER,
        fem_degree=FEM_DEGREE,
        precision=1e-3,
        # Material parameters; n3 is overridden by the material file
        n1=1,
        n2=1.4,
        n3=1.967 + 4.443 * 1j,
        # Illumination
        theta=65,
        phi=45,
        vacuum_wavelength=365e-9,
    )

    # Merge the two
    keys.update(target_keys)

    wavelengths = np.linspace(266, 800, 11)

    fem_problem = ForwardProblem(project_file, wavelengths, SiMaterial())

    # Four dimensions
    optimization_domain = [
        {"name": "h", "type": "continuous", "domain": [50, 60]},
        {"name": "width", "type": "continuous", "domain": [25, 35]},
        {"name": "swa", "type": "continuous", "domain": [84, 90]},
        {"name": "radius", "type": "continuous", "domain": [6, 8]},
    ]

    print()
    print("The target parameter to be reconstructed is")
    for parameter in optimization_domain:
        print(f"\t{parameter['name']}: {target_keys[parameter['name']]}")
    print()
    print(
        "Derivative information of the FEM solver is {}".format(
            "being used" if keys["derivative_order"] > 0 else "not being used"
        )
    )
    print()

    # Create the reference data
    print("Generating target data for reconstruction")
    target_mueller_matrix, _ = fem_problem.solve(keys)
    target_vector = target_mueller_matrix.flatten()
    uncertainty_vector = 1e-1 * target_mueller_matrix.flatten()

    # Creation of the study object
    server = Server(server_location="local")
    # server = Server(server_location="cloud")
    client = Client(host=server.host)
    study = client.create_study(
        design_space=optimization_domain,
        study_name="Ellipsometry reconstruction example",
        study_id=study_id,
        driver="BayesianLeastSquares",
        save_dir=optimization_dir_str,
    )

    # Definition of the objective function including derivatives
    def objective(study, **kwargs):

        objective_keys = keys.copy()
        objective_keys.update(kwargs)

        mueller_matrix, mueller_matrix_derivatives = fem_problem.solve(objective_keys)

        observation = study.new_observation()

        flat_mueller_matrix = mueller_matrix.flatten()
        observation.add(flat_mueller_matrix.tolist())

        if objective_keys["derivative_order"] > 0:
            for parameter in optimization_domain:
                if parameter["type"] == "continuous":
                    p = parameter["name"]
                    derivative_value = mueller_matrix_derivatives[p].flatten()
                    observation.add(derivative=p, value=derivative_value.tolist())

        return observation

    # Set study parameters
    study.configure(
        target_vector=target_vector.tolist(),
        uncertainty_vector=uncertainty_vector.tolist(),
        max_iter=NUM_ITERATIONS,
    )

    # Run the minimization
    study.set_evaluator(objective)
    study.run()

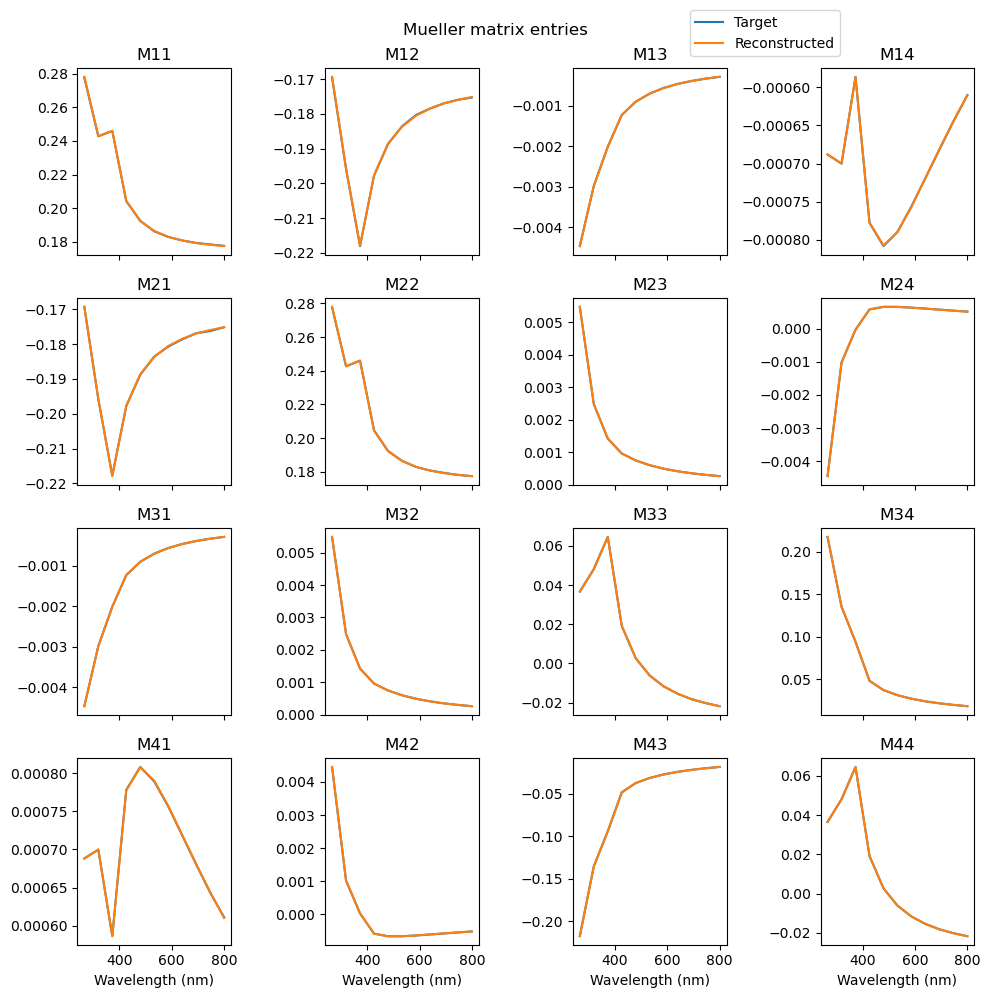

    # Plot the reconstruction results and compare it to the target
    # First reshape the target vector into a 4x4 matrix
    target_matrix = target_vector.reshape(len(wavelengths), 4, 4)
    uncertainty_matrix = uncertainty_vector.reshape(len(wavelengths), 4, 4)

    # Update the keys with the minimum parameters and get the measurement data

    best_sample = study.driver.best_sample
    min_chisq = study.driver.min_objective
    uncertainties = study.driver.uncertainties
    print(f"Reconstructed parameters with chi-squared value {min_chisq:.4e}:")
    for param in optimization_domain:
        name = param['name']
        print(f"  {name} = {best_sample[name]:.3f} +/- {uncertainties[name]:.3f}")

    keys.update(best_sample)

    print("Generating reconstruction data for comparison")
    reconstructed_mueller_matrix, _ = fem_problem.solve(keys)
    reconstructed_mueller_matrix = reconstructed_mueller_matrix.squeeze()

    fig, ax = plt.subplots(4, 4, figsize=(10, 10), sharex=True)

    fig.suptitle("Mueller matrix entries")

    for i in range(4):
        for j in range(4):

            # Set labels
            if i == 0 and j == 0:
                target_label = dict(label="Target")
                reconstructed_label = dict(label="Reconstructed")
            else:
                target_label = dict()
                reconstructed_label = dict()

            # Plot data
            ax[i, j].plot(wavelengths, target_matrix[:, i, j], **target_label)
            ax[i, j].plot(
                wavelengths,
                reconstructed_mueller_matrix[:, i, j],
                **reconstructed_label,
            )

            ax[i, j].set_title(f"M{i + 1}{j + 1}")
            if i == 3:
                ax[i, j].set_xlabel("Wavelength (nm)")

    plt.figlegend(loc="center", bbox_to_anchor=(0.77, 0.97))
    plt.tight_layout()
    plt.savefig(optimization_dir / "reconstruction.pdf", bbox_inches="tight")


if __name__ == "__main__":
    main()

The constants at the beginning of the script control the number of parallel JCMsolve jobs, whether derivative information is requested from the FEM model, the FEM degree, and the number of reconstruction iterations.

24
25
26
27
28
29
30
31
32
33
34
# Number of parallel jobs in JCMsolve; for demo version only 1 is allowed
MULTIPLICITY: int = 1

# Using derivatives of the FEM model for the reconstruction; speeds up the reconstruction
DERIVATIVE_ORDER: int = 1

# FEM degree of the JCMsuite model
FEM_DEGREE: int = 3

# Number of iterations in the optimization
NUM_ITERATIONS: int = 20

Before the study is created, the script registers the local machine with the JCMsuite daemon. This allows the optimizer to submit the FEM evaluations through the usual JCMsolve job infrastructure.

38
39
40
41
42
43
44
45
46
47
# Register the localhost as a machine to perform computations
jcmwave.daemon.add_workstation(
    Hostname="localhost",
    #
    # Number of parallel jobs
    Multiplicity=MULTIPLICITY,
    #
    # Each parallel job runs with this number of threads. Use at least 2.
    NThreads=2,
)

Inside main the script loads the target geometry parameters, defines the fixed simulation keys, creates a ForwardProblem for the wavelength grid, and specifies the four continuous parameters that should be reconstructed.

 95
 96
 97
 98
 99
100
101
    # Four dimensions
    optimization_domain = [
        {"name": "h", "type": "continuous", "domain": [50, 60]},
        {"name": "width", "type": "continuous", "domain": [25, 35]},
        {"name": "swa", "type": "continuous", "domain": [84, 90]},
        {"name": "radius", "type": "continuous", "domain": [6, 8]},
    ]

The target data are generated by evaluating the FEM model with the target parameters. The Mueller matrix is flattened into target_vector. The matching uncertainty_vector assigns one uncertainty value to each component of the target vector.

115
116
117
118
119
    # Create the reference data
    print("Generating target data for reconstruction")
    target_mueller_matrix, _ = fem_problem.solve(keys)
    target_vector = target_mueller_matrix.flatten()
    uncertainty_vector = 1e-1 * target_mueller_matrix.flatten()

The optimizer is started through a local Server and Client. The study uses the BayesianLeastSquares driver because the reconstruction compares a vector-valued model response with a vector-valued target measurement.

121
122
123
124
125
126
127
128
129
130
131
    # Creation of the study object
    server = Server(server_location="local")
    # server = Server(server_location="cloud")
    client = Client(host=server.host)
    study = client.create_study(
        design_space=optimization_domain,
        study_name="Ellipsometry reconstruction example",
        study_id=study_id,
        driver="BayesianLeastSquares",
        save_dir=optimization_dir_str,
    )

The objective function receives one candidate parameter set from the study, updates the JCMsuite project keys, and solves the forward problem. It returns an observation containing the flattened Mueller matrix. When derivatives are enabled, the corresponding parameter derivatives are added to the same observation.

133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
    # Definition of the objective function including derivatives
    def objective(study, **kwargs):

        objective_keys = keys.copy()
        objective_keys.update(kwargs)

        mueller_matrix, mueller_matrix_derivatives = fem_problem.solve(objective_keys)

        observation = study.new_observation()

        flat_mueller_matrix = mueller_matrix.flatten()
        observation.add(flat_mueller_matrix.tolist())

        if objective_keys["derivative_order"] > 0:
            for parameter in optimization_domain:
                if parameter["type"] == "continuous":
                    p = parameter["name"]
                    derivative_value = mueller_matrix_derivatives[p].flatten()
                    observation.add(derivative=p, value=derivative_value.tolist())

        return observation

Finally, the target vector, uncertainty vector, and iteration limit are passed to the study. After the objective has been registered as evaluator, study.run() performs the reconstruction loop.

155
156
157
158
159
160
161
162
163
164
    # Set study parameters
    study.configure(
        target_vector=target_vector.tolist(),
        uncertainty_vector=uncertainty_vector.tolist(),
        max_iter=NUM_ITERATIONS,
    )

    # Run the minimization
    study.set_evaluator(objective)
    study.run()

After the minimization, the script reads the best sample, the minimum \chi^2 value, and the estimated parameter uncertainties from the study driver. The reconstructed parameters are then inserted into the JCMsuite keys and the forward problem is solved once more for comparison with the target data.

173
174
175
176
177
178
179
180
181
182
183
184
185
    best_sample = study.driver.best_sample
    min_chisq = study.driver.min_objective
    uncertainties = study.driver.uncertainties
    print(f"Reconstructed parameters with chi-squared value {min_chisq:.4e}:")
    for param in optimization_domain:
        name = param['name']
        print(f"  {name} = {best_sample[name]:.3f} +/- {uncertainties[name]:.3f}")

    keys.update(best_sample)

    print("Generating reconstruction data for comparison")
    reconstructed_mueller_matrix, _ = fem_problem.solve(keys)
    reconstructed_mueller_matrix = reconstructed_mueller_matrix.squeeze()

This particular reconstruction can typically be performed in very few iterations despite containing four different parameters, each with a flat prior.

_images/progress.png

The parameter reconstruction reaches \chi^2 values close to 1 after only a few iterations.

After 20 iterations the Mueller matrix values have been sufficiently reconstructed.

_images/reconstruction.png

After 20 iterations the reconstructed Mueller matrix entries are indistinguishable from the target vector.
