Cloud Computation

In this tutorial we show how to use cloud-based computational resources for the example of Amazon Web Services (AWS). Computation resources of other cloud providers such as Google Cloud Platform (GCP) and Microsoft Azure can be integrated in a similar manner.

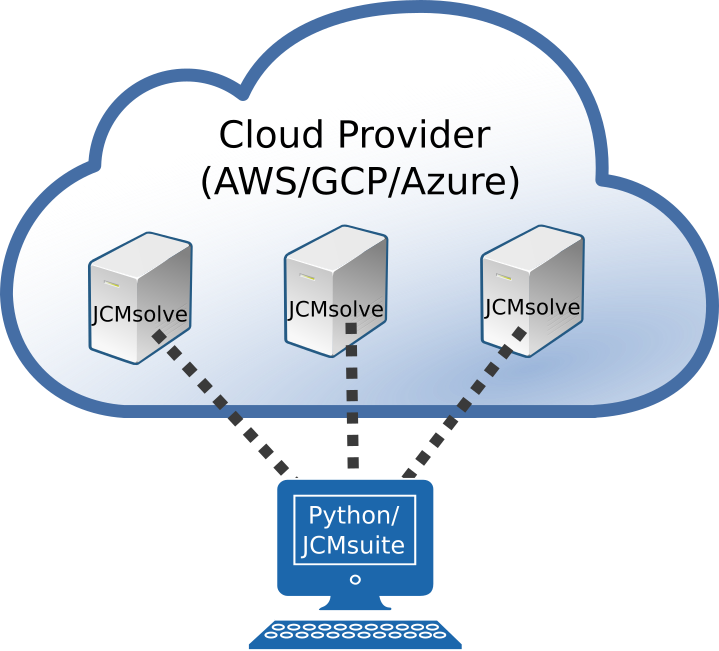

_images/Cloudcomputing.png

JCMsuite allows to integrate cloud computing resources via its Python interface (license).

If you want to execute the sample code you need to create an account at AWS (https://aws.amazon.com/resources/create-account/). Afterwards you get the possibility to use small, free tier computing resources.

Step 1: Create a Key Pair

For securely connecting to an AWS machine you need to create a SSH key pair. To this end open the Key Pairs section of the Amazon management console (https://console.aws.amazon.com/ec2/#KeyPairs). Click on Create Key Pair and choose a name for the key pair (e.g. KeyPairAWS). Save the created file containing the private key in some appropriate path (e.g. ~/.ssh/KeyPairAWS.pem).

Step 2: Launch a new Instance

Now we can launch a new Elastic Compute Cloud (EC2) instance.

  1. Open the EC2 management console (https://console.aws.amazon.com/ec2/#Instances) and click on Launch Instance.
  2. Choose a Linux image (e.g. the first listed image Amazon Linux 2 AMI (HVM), SSD Volume Type) and click on Select.
  3. In the next step you can choose the image type, i.e. the number of virtual CPUs, the memory size, and the storage size. For test purposes you can choose a free tier eligible t2.micro instance with one CPU and 1 GB of RAM. Click on Review and Launch and then on Launch.
  4. Select the key pair for connecting to the instance and click on Launch Instances.
  5. Click on View Instances and wait until all Status Checks are passed (signified by a green check mark).
  6. Copy the Public DNS of the instance to the clipboard (e.g. ec2-11-222-333-44.us-west-2.compute.amazonaws.com)

Note

AWS instances can be also started from within Python by using the package boto3. For details on the installation, configuration and usage see https://boto3.readthedocs.io/en/latest/index.html?version=6.4.8

Step 3: Install JCMsuite

Before we can integrate the instance as a computing resource via the JCMdaemon we need to set up a minimal JCMsuite environment on the instance:

instance_info = dict(
    Hostname = '<EC2 DNS>',
    Login = 'ec2-user',
    PEMFile = '<PATH TO PEM FILE>',
    JCMROOT = '/home/ec2-user/bin/JCMsuite')

jcmwave.daemon.install_remote_environment(
                      IncludePython = False,
                      **instance_info)

The Hostname variable must be replaced by the copied value of Step 2 (e.g. ec2-11-222-333-44.us-west-2.compute.amazonaws.com). The PEMfile variable must be replaced by the path to the key pair file (e.g. /home/USERNAME/.ssh/KeyPairAWS.pem).

In many cases the remote environment does not require a Python installation, which has a size of about 1 GB. Only if, e.g., user-defined field sources, material tensors or integration densities are provided as Python expressions, Python has to be included in the installation. The use of embedded scripting does not require Python on the remote host. Therefore, we set IncludePython to False to speed up the installation process.

If you are prompted to add the identity of the remote instance as a known host, type ‘yes’ and click OK.

Note

The installation files are extracted from the JCMsuite installation of you local Linux machine. If the local computer runs under Microsoft Windows the installation step has to be performed manually.

  1. Download a the Linux installation with the same version number as the locally installed JCMsuite version from https://installation.jcmwave.com/.

  2. Upload the installation script to the remote machine. For example, run:

    scp -i ~/.ssh/KeyPairAWS.pem ~/Downloads/JCMsuite_<VERSION>.run ec2-user@<EC2 DNS>:~

  3. Open a ssh session to the remote instance that forwards the license server and port (e.g. maxwell:8992) to a remote port:

    ssh -i ~/.ssh/KeyPairAWS.pem -R 8992:maxwell:8992 ec2-user@<EC2 DNS>

  4. Run the installation on the remote instance:

    sh ~/JCMsuite_<VERSION>.run


    When prompted choose to configure the license and to use license server (option 5). As a license server enter localhost:8992.

Step 4: Save Image (optional)

After the installation it is possible to save the instance as an Amazon Machine Image (AMI). In the Instances section of the AWS management console (https://console.aws.amazon.com/ec2/#Instances) click on Action -> Image -> Create Image. Chose a name for the image (e.g. JCMsuite-<VERSION>) and click on Create Image. The status of the image can be checked in the Images section of the management console (https://console.aws.amazon.com/ec2/#Images).

The next time you launch a new instance you can chose the created image from custom AMIs to avoid repeating the JCMsuite installation step.

Note

The JCMsuite version of the remote instance must correspond to your local version. Otherwise JCMdaemon cannot communicate with the remote instance.

Step 5: Add Instance

The remote instance can now be added as a workstation in the usual way by calling

jcmwave.daemon.add_workstation(
                      NThreads = 1,
                      LicenseServerPort = 8992,
                      **instance_info)

Since the remote instance cannot directly access the local license server, it looks for the license server at localhost:8992. By setting LicenseServerPort = 8992 the local license server is made accessible via a remote port forwarding.

Step 6: Use Instance

The added workstation now behaves like any other machine added within your local network. For example one can run a parameter scan as in the tutorial example Parallel Parameter Scan:

radii = np.linspace(0.3, 0.5, 4)
job_ids = []

for radius in radii:
    keys = {'radius': radius}
    job_id = jcmwave.solve('mie2D.jcmp', keys=keys,
        logfile = open(os.devnull, 'w'),
        temporary = True
        )
    job_ids.append(job_id)

results, logs = jcmwave.daemon.wait(job_ids = job_ids)
scattering_cross_section_scan = []
for iR in range(len(radii)):
    scs = results[iR][1]['ElectromagneticFieldEnergyFlux'][0][0].real
    scattering_cross_section_scan.append(scs)

# plot scattering cross section against rod radius
from matplotlib.pyplot import *
plot(radii, scattering_cross_section_scan, '-+', linewidth=2, markersize=14)
xlabel('radius [$\mu$ m]', fontsize=14)
ylabel('integral scattering cross section', fontsize=14)
axis('tight')
show()
jcmwave.daemon.shutdown()
